Commodore Amiga 500 Power Supply schematic

Commodore Amiga 500 Power Supply schematic, thanks to Jozsef Vamosi.

Commodore Amiga 500 Netzteil (German)

Commodore Amiga 500 Netzteil (German), thanks to Jozsef Vamosi.

This is a scan of a fax, so unfortunately it isn’t a good quality.

Steen Karmark has supplied images for the C1802 monitor box, and the Commodore 64 PSU (German).

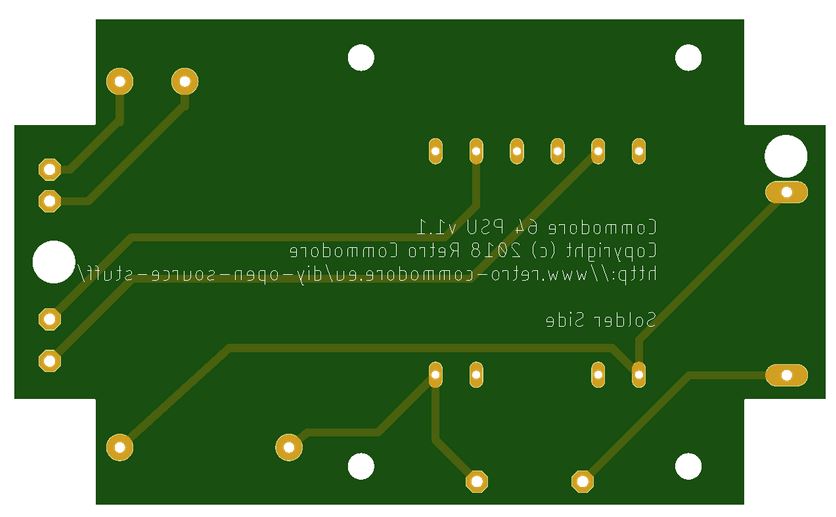

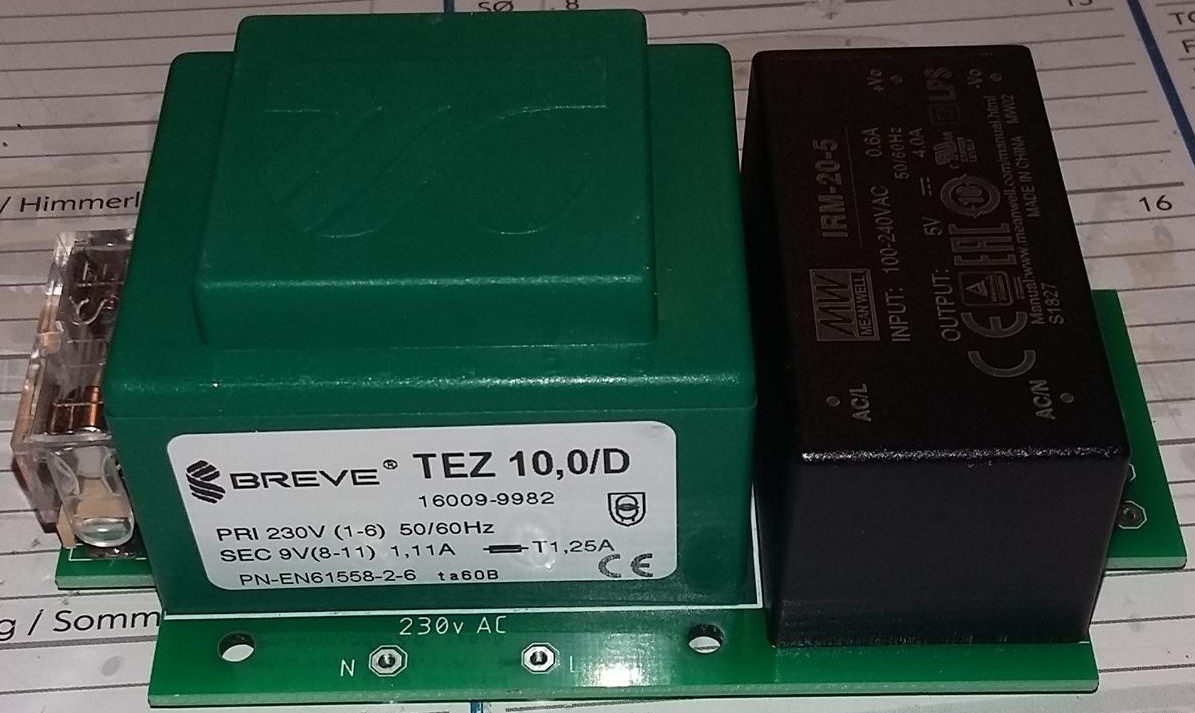

We’ve open sourced our designs for a modern C64 that won’t kill your C64 it if breaks.

Using the 4A part will make it powerful enough to power a C128. Everything, well almost, you need is described in the project of github.

You can find a link to the project in our DIY Open Source Stuff page, found in the menu Misc -> Own Production.

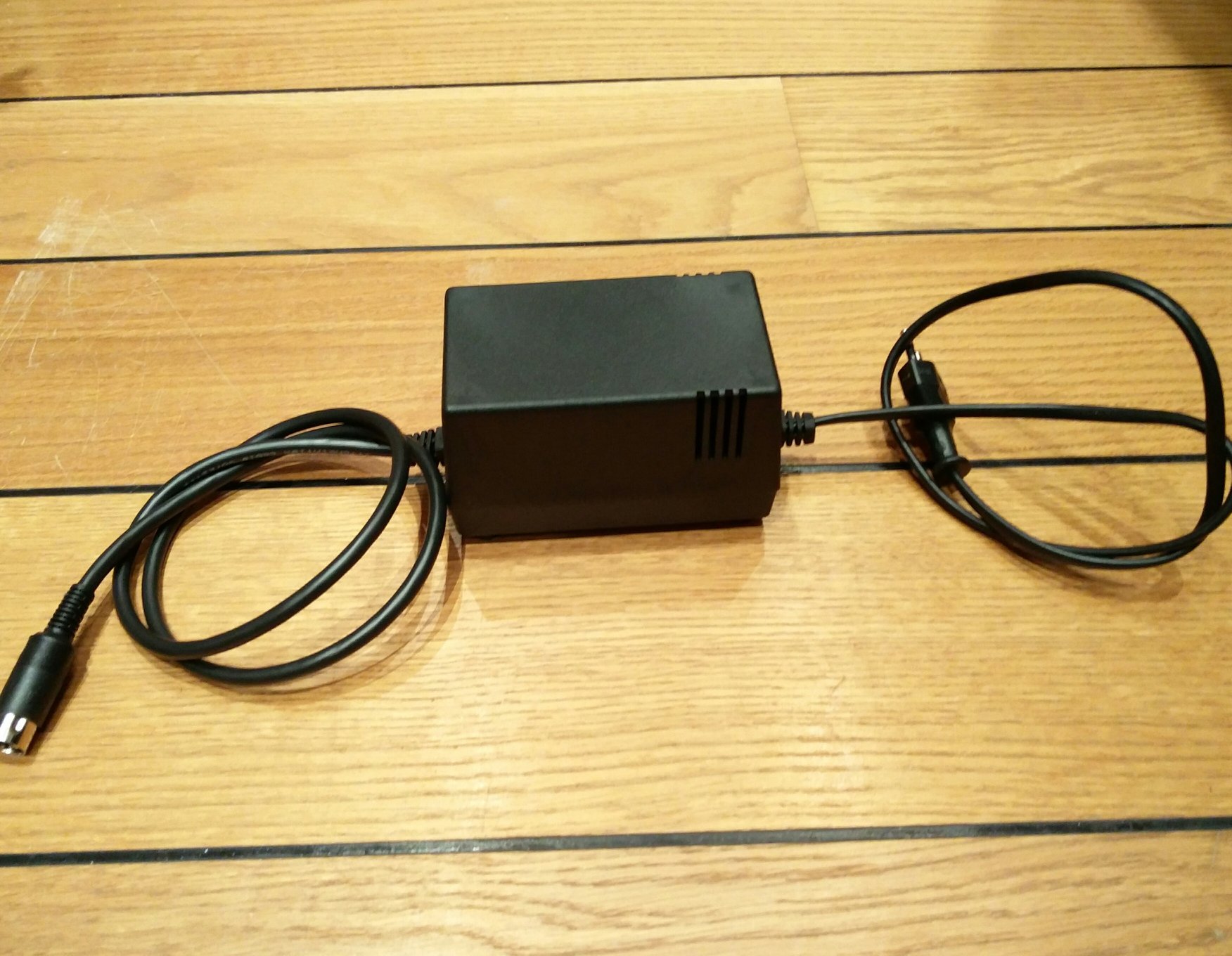

It is rumored that the pcb can be fit inside the C64c model of the brick psu.

Feedback welcome.
